    Home»macOS»Installing Vodafone K3765-HV On Mac OS X 10.10 Yosemite
    macOS

    Installing Vodafone K3765-HV On Mac OS X 10.10 Yosemite

    Gee Are PabstBy Gee Are PabstAugust 10, 2014Updated:August 27, 201636 Comments3 Mins Read
    Vodafone logo square

    Vodafone logo squareA Huawei / Vodafone K3765-HV mobile broadband modem USB stick is easily installed on Mac OS X 10.10 Yosemite. Just use the following work around to get your Huawei / Vodafone K3765-HV running on Yosemite. If you also have a Windows 8 / 8.1 PC, you install it following the Windows 8 / 8.1 instructions. I have already posted instruction for installing K3765 on Mac OS X 10.9 Mavericks. Update: Installing Huawei E3372 On macOS 10.12 Sierra works also for Huawei / Vodafone K3765-HV.

    Finally, if the Huawei / Vodafone K3765-HV is unlocked and voice functions are enabled, this modem USB stick is utilizable as a GSM Gateway on FRITZ!Box models which are capable for mobile broadband modem USB sticks, e.g. on a FRITZ!Box 7390.

    I conducted the installation with the following set up:

    • MacBook Pro 13” Retina End 2013.
    • Huawei / Vodafone K3765-HV modem USB stick (Hardware version  CD25TCPV, Chipset Qualcomm MSM6290, 7.2 Mbit/s via HSDPA, 5.75 Mbit/s via HSUPA) with micro SD slot for up to 8 GB and a hidden connector for external antenna (Specifications Huawei / Vodafone K3765-HV):
      Huawei / Vodafone K3765-HV: Package Content
      Source: miApple.me
      Huawei / Vodafone 3765-HV: Status LED Indicator, micro SD slot, hidden external antenna jack
      Source: miApple.me
      Huawei / Vodafone 3765-HV: model type, IMEI / serial number
      Huawei / Vodafone K3765-HV: Location of screws to open K3765
      Source: miApple.me
      Huawei / Vodafone K3765-HV: External antenna jack and body housing
      Source: miApple.me
      Huawei / Vodafone K3765-HV: uncovered with external antenna jack
      Source: miApple.me
      Huawei / Vodafone K3765-HV: Position of external antenna jack in body housing
      Source: miApple.me
    • Huawei Mobile Connect Driver for Mac, update for MacBook air (MobileConnectDriver for Mac Book Air 2013, 2013-08-31, software version 4.25.45.00)
    • Notes:
      • For software updates click here and search for ‘Mac‘.
      • Mobile Partner for Mac OS X 10.9 is NOT working on Mac OS X 10.10 Yosemite beta 5. Therefor, I describe an alternative way to connect the K3765 without the Mobile Partner software.

    The work around on Mac OS X 10.10 Yosemite is as follows:

    1. Download and install Huawei Mobile Connect Driver for Mac 4.25.45.00: [wpfilebase tag=”file” id=4 /]

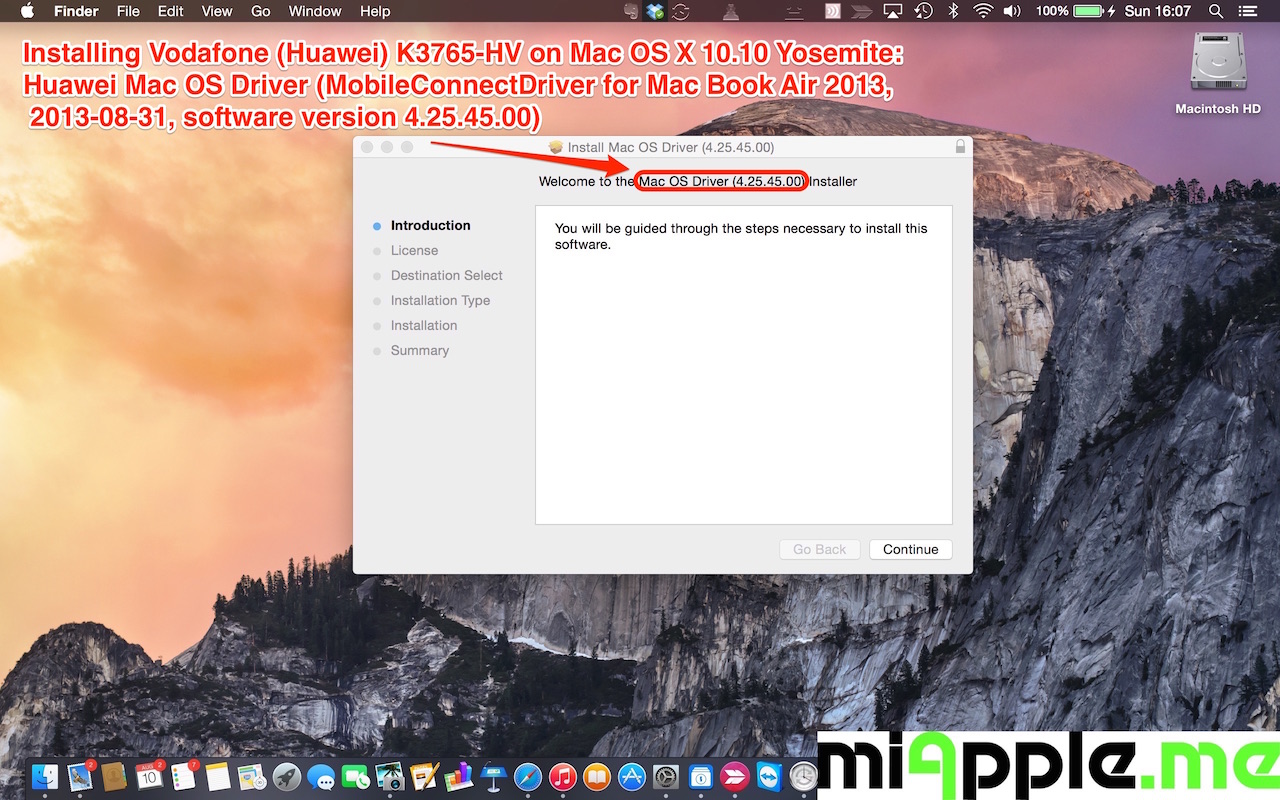

      Huawei Mac OS Driver Yosemite
      Huawei Mac OS Driver Yosemite
    2. Insert the SIM-card into your K3765-HV, connect it to your Mac and skip installation of Vodafone Mobile Broadband software.
    3. Open ‘System Preferences‘ and select ‘Network‘. Click on ‘+‘ and create a new service. Select ‘HUAWEIMobile-‘ (NOT ‘HUAWEIMobile’!) and click on ‘Create‘.

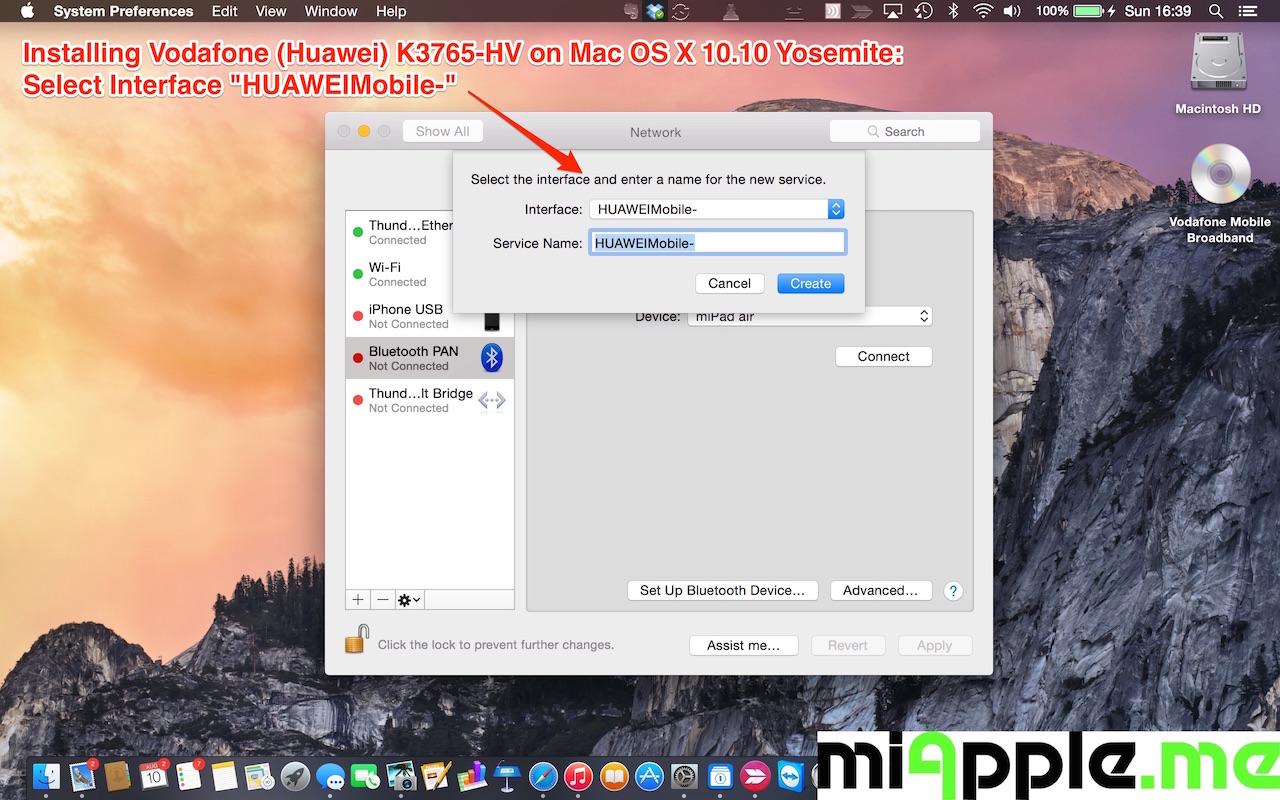

      Installing Vodafone K3765 Yosemite Step 1
      Installing Vodafone K3765 Yosemite Step 1
    4. For configuration, select configuration ‘Default‘, type ‘*99#‘ in the field ‘Telephone number‘ and leave empty ‘Account name‘ and ‘Password‘. Click on ‘Connect‘ to establish the connection.

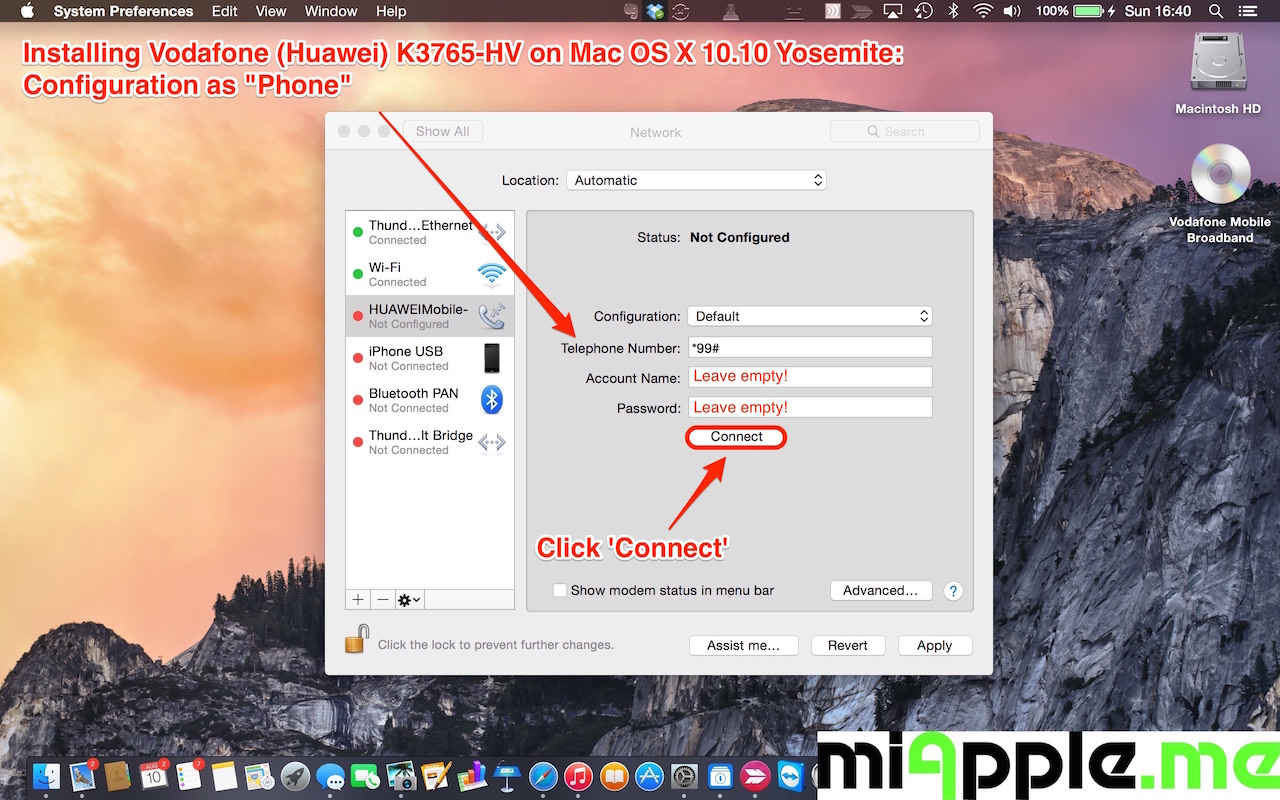

      Installing Vodafone K3765 Yosemite Step 2
      Installing Vodafone K3765 Yosemite Step 2
    5. If the connection is correctly built, you will find the status ‘connected‘. The close the connection, just click on ‘disconnect‘ or unplugyourK3765.

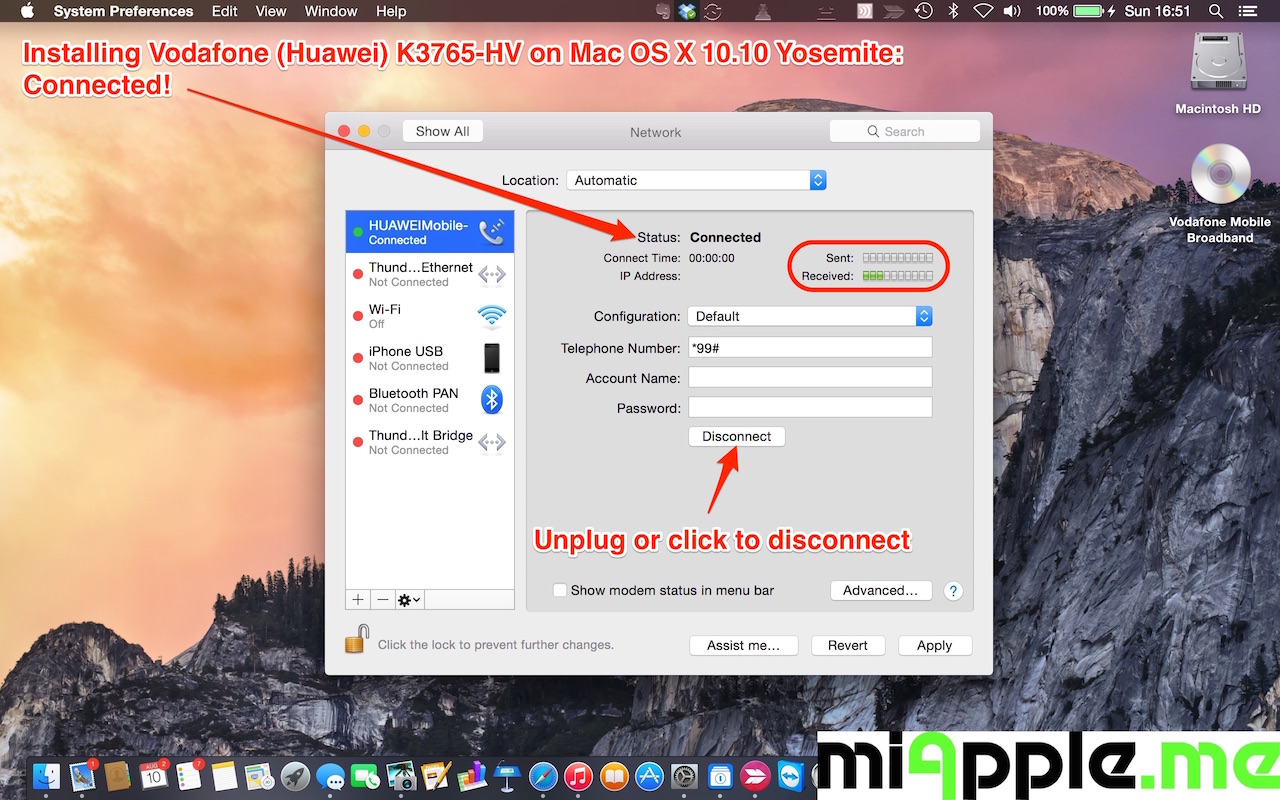

      Installing Vodafone K3765 Yosemite Step 3
      Installing Vodafone K3765 Yosemite Step 3

    Note: Every time you plug the Huawei / Vodafone K3765-HV to your Mac again, installation of Vodafone Mobile Broadband software is prompted. Just ignored it and skip it.

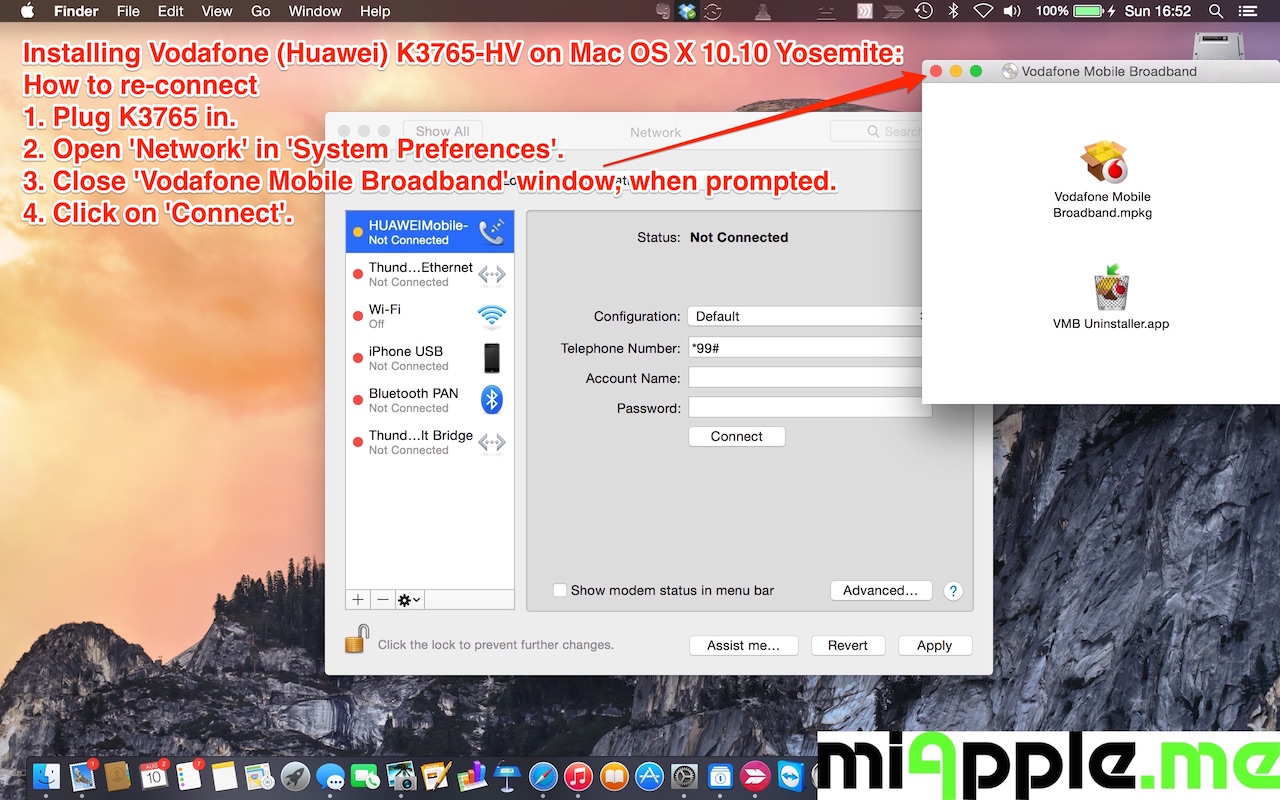

    Connecting Vodafone K3765 Yosemite: 1. Plug K3765 in. 2. Open 'Network' in 'System Preferences'. 3. Close 'Vodafone Mobile Broadband' window, when prompted. 4. Click on 'Connect'. Connecting Vodafone K3765 Yosemite.
    Connecting Vodafone K3765 Yosemite

    Installing a Huawei / Vodafone K3765-HV mobile broadband modem USB stick on Mac OS X 10.10 Yosemite is easily done by using the Huawei Mobile Connect Driver and the Mac’s built-in network preferences.

    Stay tuned! 😉

    FRITZ!Box FRITZ!Box 7390 Huawei Huawei K3765 Mac MacBook Mobile Broadband Modem Mobile Partner Vodafone Vodafone K3765 VOIP Yosemite
    Previous ArticleMac OS X 10.10 Yosemite: Lights Out Automatically Switches Dark Mode And Light Mode
    Next Article PlexConnect on Windows: How To Hijack iMovie Theatre Or WSJ Instead Of Trailers App
    Gee Are Pabst
    • Website
    • Facebook
    • X (Twitter)
    • Pinterest
    • LinkedIn

    Hi there,my name is Gee Are, blogger and analyst. Blogging is my Passion! I’m the founder and owner of the two blogs called pabst.socialmedia and miapple.me - Tech.Blog.My work experience as a blogger and analysist (Internet Intelligence, SEO and social media) is the basis of the services of pabst.socialmedia.Find more about me.

    Related Posts

    macOS

    Fixing: Time Machine couldn‘t complete backup

    April 30, 2021
    Android

    Calipio: Screen Recording Without Registration, E2E-encrypted

    February 15, 2021
    macOS

    Fixing Mac No Admin Account On macOS Mojave Or Later

    February 3, 2021
    View 36 Comments

    36 Comments

    1. molaku on March 31, 2015 04:56

      What would we do without you. You’ve made our lives easy (unlike some people who works at Huahwei, who didn’t bother to document this in shipped units). Thanks again

      Reply
      • Gee Are Pabst on March 31, 2015 05:46

        Hi Molaku,

        you’re welcome! Thanks for feedbacking! 🙂

        Cheers,
        Gee Are

        Reply
    2. jean claude scicluna on February 25, 2015 09:14

      hi brother i am using a model k3770-z and yosemite on latest mac mini and i m going to try what you re suggesting , fingers crossed it will work if not i ll post over here , thank you.

      Reply
      • Gee Are Pabst on March 2, 2015 17:17

        Hi Jean Claude,

        any news about your K3770-Z and Yosemite?

        Cheers,
        Gee Are

        Reply
    3. David Larsen on February 8, 2015 03:48

      Hi. I have K4505-z does that mean this software will also not work with it? I have followed the link to the ZTE downloads page. Would I download the first option there – and then what? Thanks so much, this is the only info I can find online to help with this problem.
      Rosanne

      Reply
      • Gee Are Pabst on February 8, 2015 23:39

        Hi David,

        I didn’t try the following on my own, But it should work:
        Go through my workaround and install ZTE Connection Manafer instead of the Huawei one: http://dc-files.com/files/zte/modems/k4505z/
        All other steps are nearly the same.
        Let us know your findings! Thanks!

        Cheers,
        Gee Are

        Reply
    4. Sarita on February 2, 2015 17:28

      I tried as you have mentioned above but it doesn’t work on my macbook air. instead it says “A connection could not be established to the PPP server. Try reconnecting. If the problem continues, verify your settings and contact your Administrator.”

      I don’t know what to do ! i need your help!

      Reply
      • Gee Are Pabst on February 3, 2015 21:18

        Hi Sarita,

        referring to:
        “4. For configuration, select configuration ‘Default‘, type ‘*99#‘ in the field ‘Telephone number‘ and leave empty ‘Account name‘ and ‘Password‘. Click on ‘Connect‘ to establish the connection.”

        These are standard settings. Maybe your provider has other settings. Try it with your provider’s settings.

        Cheers,
        Gee Are

        Reply
    5. brian on November 11, 2014 17:39

      Hi Gee Are,

      Thanks for posting this workaround. I’m having the same problem connecting my stick to Mac OS X 10.10, except my stick is a vodafone k4021-z . That means it’s not manufactured by Huawei, right? It’s ZTE? Do you by chance know of any resources that would accomplish what you’ve done here for a ZTE stick?

      Thanks,
      Brian

      Reply
      • Gee Are Pabst on November 11, 2014 19:09

        Hi Brian,

        it’s indeed a ZTE Vodafone K4021-z USB modem stick. This means the Huawei software won’t work. Alternatively, check this ZTE software (Mac file “ZTE Connection Manager.mpkg”): https://www.dc-unlocker.com/downloads/ZTE/Dashboards

        Let us know if you got success or not!

        Cheers,
        Gee Are

        Reply
        • brian on November 12, 2014 17:13

          thanks! I’ll let you know how it goes.

          Reply
    6. Richard LEonard on November 5, 2014 07:57

      Hi, I went through these stps and it did not work, Although the Huawei software has stopped the USB Dongle frm crashing my mac when i unplug it, but still cannot get it to connect: I have the Vodafone K4305 USB Dongle and the MacBook Pro “13 i7 16GB RAM

      Reply
      • Gee Are Pabst on November 5, 2014 21:06

        Hi Richard,

        check the following:
        1. Disable PIN protection of your SIM card.
        2. ‘4. For configuration, select configuration ‘Default‘, type ‘+99#‘ in the field ‘Telephone number‘ and leave empty ‘Account name‘ and ‘Password‘. Click on ‘Connect‘ to establish the connection.’ These are default values. Maybe your provider has some dedicated values for ‘telephone number’, ‘Account name’ and ‘Password’. Use them instead.

        Cheers,
        Gee Are

        Reply
        • Richard on November 6, 2014 08:06

          Hi Gee Are,

          Thank you for your reply it really is greatly appreciated.

          I have disabled the PIN protection on the device by plugging it into the windows VM, as i cannot get to any setting of the device from my Mac.

          Then I installed the Huawei driver as specified, and that stopped it crashing my mac if I unplug the dongle, But when i go through the steps to create the new connection, the Mac Network settings are only picking up Thunderbolt network, Wifi and Ethernet, there is no option for Default: the only connection i am able to create is has this symbol next to it

          Reply
          • Gee Are Pabst on November 6, 2014 20:20

            Hi Richard,

            on network preferences, have you clicked to unlock the preferences?

            Cheers,
            Gee Are

            Reply
            • Gee Are Pabst on November 22, 2014 23:05

              There was a misspelling: “+99#” is wrong, “*99#” correct.

              Reply
              • Richard on March 2, 2015 18:17

                Hi Gee Are,

                I have fixed the issue by installing and using the Mobile Partner Software instead of the Vodafone software.

                Regards

                Reply
                • Gee Are Pabst on March 8, 2015 22:09

                  Hi Richard,

                  many thanks for your feedback!

                  Cheers,
                  Gee Are

                  Reply
    7. @goldenbanana1 on October 30, 2014 13:05

      @tirone Nothing yet hey, i tried their (Vodacom) workaround but it didn’t work for me. https://t.co/TB7C7ylEQE

      Reply
    8. @00Something on August 28, 2014 10:39

      Connect with netstick On Mac OS X 10.10 Yosemite – miApple.me https://t.co/6wgNxOqajv

      Reply
    9. Pingback: Installing Vodafone K3765-HV On Mac OS X 10.9.1 Mavericks - miApple.me

    10. miApple.me (@miAppleMe) on August 10, 2014 21:33

      Installing Vodafone K3765-HV On Mac OS X 10.10 Yosemite http://t.co/pHxaA5siMl

      Reply
      • hassan on November 22, 2014 22:51

        Thank you very much for your help , but there is a little mistake by typing the telephone number to connect is*99# not +99# that’s why it doesn’t work with me first

        Reply
        • Gee Are Pabst on November 22, 2014 23:04

          Hi hassan,

          thank you so much! Indeed, it was a misspelling! In the picture below it is correct. OP updated.

          Cheers,
          Gee Are

          Reply
